Product parameters:

Product name: steel structure mezzanine board

Product type: Composite sheet

Manufacturer: Anhui Huacheng Xing Building Materials

Origin: Chuzhou, Anhui Province

Product quality grade: Non-combustible A grade

Specifications: customizable

Available range: nationwide

Product Details:

Steel structure sandwich board is a new type of building plate. When making steel structure sandwich board, it needs to be maintained by high temperature steam and pressed by thousands of tons of laminating machine. In this way, the generated cement pressure board has high strength and strong bearing capacity. The normal specification length and width of this boardis 2.44*1.22 meters, and there are many kinds of thickness, about 18mm~30mm.

How to make steel structure sandwich board more safe?

First, install the column

Column is a key to the whole steel structure layer, may be a lot of friends think we do steel structure sandwich, do not need to install column, in fact, this is not safe. Because of the direct connection on the wall, it is very easy to shake and collapse. For the force column of steel structure layer, I recommend that you choose I-beam. Like compound overhang parts, generally add four I-beam columns.

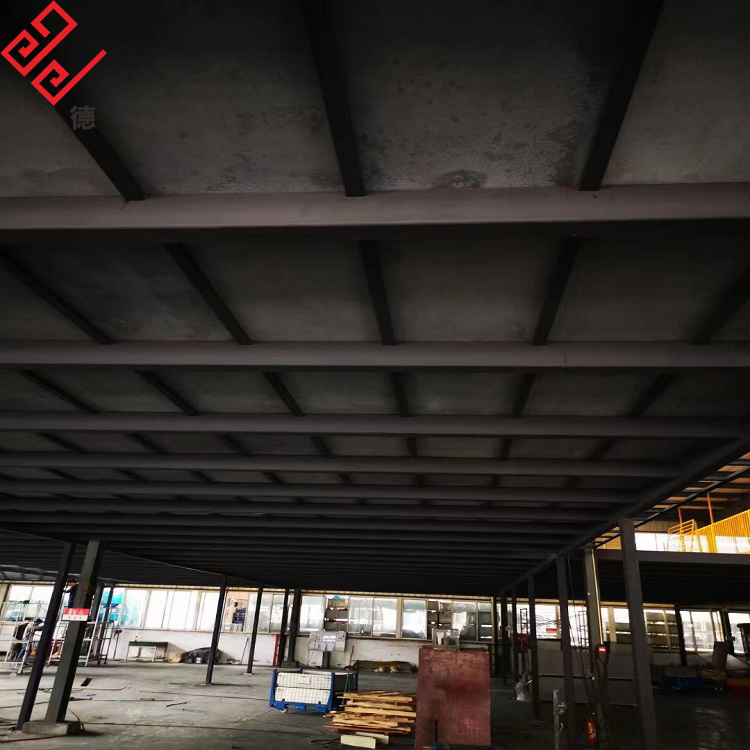

Second, install the beam

After we have fixed the column firmly with the ground, we weld the beams above the column. For beams, I-beams are also used if conditions permit. Because the vibration of I-beam is relatively small. This has a very good effect on sound insulation. If you choose channel steel, you must choose more than 200 channel steel, and channel steel wall thickness as thick as possible, can not appear fibrillation.

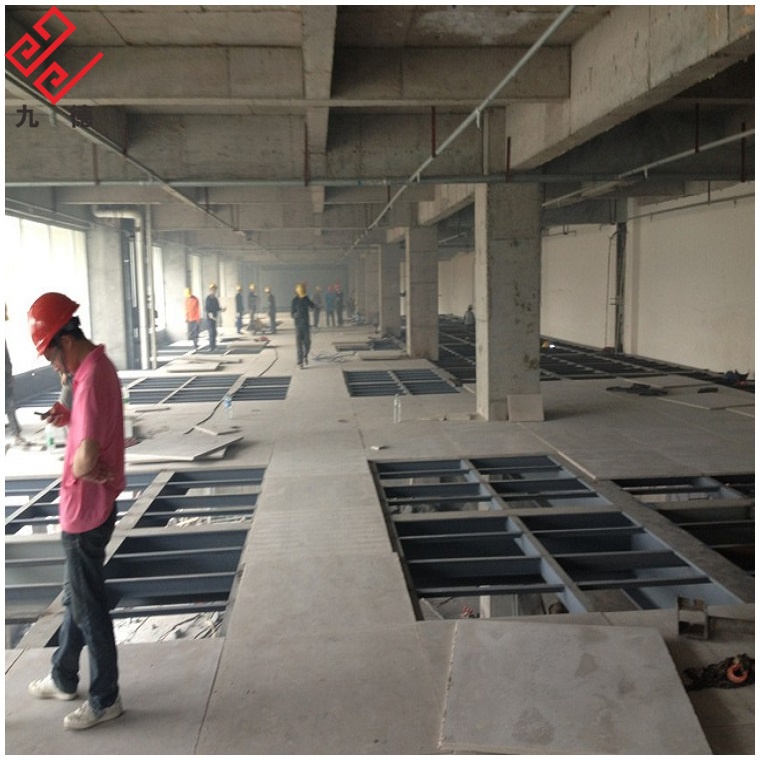

Three, floorslab installation

1. Before laying the floor, the welding seam on the top surface must be polished and cleaned up.

2. The vertical direction of the floor should be parallel to the main beam.

3. Any edge of the board shall not be suspended.

4. A gap of 3-5mm must be left between the plates.

5. The joint between the plate and the plate should be located in the center of the beam.

Sound insulation skills of steel structure sandwich floor:

In the steel skeleton cavity below the floor filled with sound-absorbing cotton, insulation cotton and other insulation, insulation materials, cover the hanging roof does not affect the appearance, neither occupy space, but also play the effect of insulation and sound insulation.
