Stiffened plate

The stiffened plate is the plate with high-strength steel wire mesh added in the plateof loft steel structure floor. In the structural design, the stiffened strip is used in the middle of the plate to improve the bearing capacity of the panel and the overall structure. The stiffened strip and the plate are the overall structure

Consultation

Details

What kind of stiffened plate is it?

Stiffened plate is loft steel structure floor plate of high strength steel wire mesh plate is added, in the structure design, by using reinforced bar in the middle of the panel, in order to improve the carrying capacity of the panel and the overall structure, reinforced bar and panel for the overall structure, adopting the new preparation technology of high strength steel wire mesh and high density fiber cement composite together. Reinforced board is a kind of reinforced board which is based on fiber cement. The production of reinforced board is based on high-density fiber cement board. It is a new type of building board in the current building materials market. Sheet strength is high, weight is light, have outstanding fire prevention moistureproof sex, it is the first selection that light steel structure sandwich material, sheet is compared with traditional pouring floor weight, it is the weight of its 1/3 about. The average load per square meter can reach more than one ton, fully meeting the relevant national building structure bearing requirements. It is more than adequate to meet the needs of family life.

Product introduction

I. production process: the stiffened board is made of Portland cement, high-strength steel wire mesh and natural mineral plant fiber as the main raw materials, through pulping, molding, high compression and high-temperature steaming.

Ii. Product features

1. The method of stiffened plate makes its self-weight light, which is about one third of the weight of poured floor slab, which can greatly reduce the construction foundation load and effectively reduce the foundation investment!

2. The thickness of the reinforced plate is thin, thin is high! The general size is 1200 2400 20~30mm, significantly expanding the use of the building space!

3. The process of reinforced slab not only has good fireproof performance but also has long fireproof time. It belongs to A1 non-combustible floor material. Can effectively block open fire!

4. The reinforced board has lower thermal conductivity, reducing the energy consumption, and the house has good thermal insulation effect!

5. Simple plate construction, faster efficiency! Comprehensive cost is low. Less construction waste, conducive to the protection of the environment!

6. The reinforced board features water resistance, moisture resistance and corrosion resistance, so it is more durable!

7. Product specification of reinforced board: 1200 2400 20-30mm, larger specification saves time!

Application:

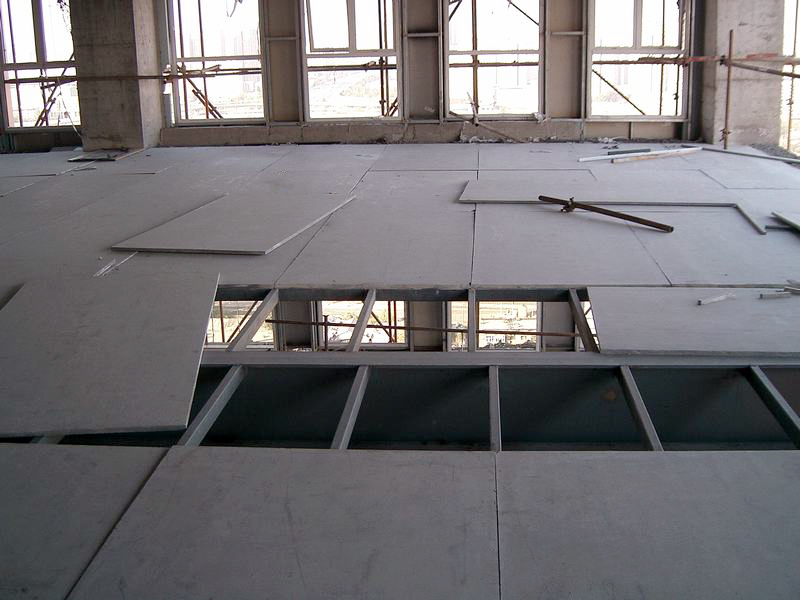

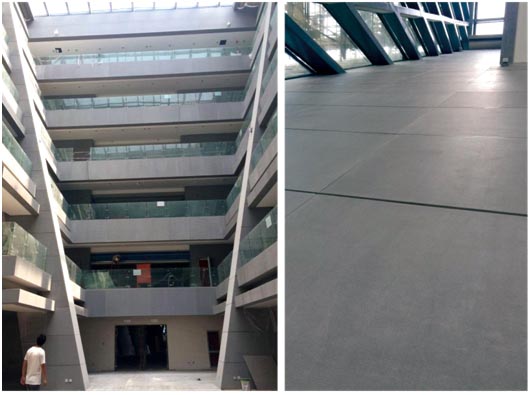

Serviced apartments, villas, steel office buildings, LOFT business space, steel factory on the second floor, etc. Construction unit, designer, construction unit can choose the product according to the specific situation of the project.
Stiffened board is a special floor board for steel structure attic, which is widely used in Beijing, shijiazhuang, Hohhot, baotou, tianjin, Shanghai, guangzhou, xi 'an, dalian and other first-tier and second-tier cities.
Main specifications: 1200* 2400*20-30mm if the customer needs other format size, the enterprise can take the place of cutting, special specifications can be scheduled processing. If there is any technical problem, please contact our company in time.
