What is LOFT Mezzanine Floor?
Huachengxing LOFT Mezzanine Floor, also referred to as LOFT Steel-Frame Floor, is a high-density compressed fiber board integrated within a steel support structure. It is commonly used as an intermediate floor system in duplex or loft-style buildings with high ceilings (typically 4.8 to 5.6 meters).

Thanks to its lightweight nature, high strength, and slim profile, this floor system helps create a sense of spaciousness, visual continuity, and an open, flowing layout. The result is a brighter, more expansive interior with an enhanced aesthetic and modern artistic appeal.

I. Production Process
Huachengxing LOFT Mezzanine Floor is made primarily from Portland cement, natural minerals, fibers, and paper pulp as key raw materials. The manufacturing process involves pulping, molding, high-pressure compression, and high-temperature steam curing.

II. Product Features
1.Lightweight – reduces structural load on buildings.

2.Excellent Sound Insulation – provides effective noise reduction.

3.Low Thermal Conductivity – delivers strong thermal insulation performance.

4.Fireproof & Water-Resistant – Class A non-combustible flooring material.

5.High Density & Strength – superior load‑bearing capacity per square meter.

6.Thin Profile – typical dimensions 1200×2400 mm, thickness 20–30 mm, maximizing usable space.

7.Easy & Fast Installation – low overall cost, minimal on‑site waste.

8.Long Service Life – typically exceeds 50 years under normal conditions.

III. Technical Parameters

Material: Portland cement, quartz sand, reinforced fiber, flame‑retardant additives

Fire Rating: Class A non‑combustible (GB 8624‑2012)

Bulk Density: >1.50 g/cm³

Moisture Content (as shipped): <10%

Thermal Conductivity: 0.24 W/(m·K) average (JC/T 564)

Sound Insulation (Volume): 45 dB (GBJ 75‑84)

Flexural Strength: >16 MPa (GB/T 7019‑2014)

Water Absorption Rate: <0.19% (GB/T 7019‑2014)

Drying Shrinkage: <0.09% (GB/T 7019‑2014)

Radioactivity: Compliant (GB 6566‑2000)

IV. Application Scope

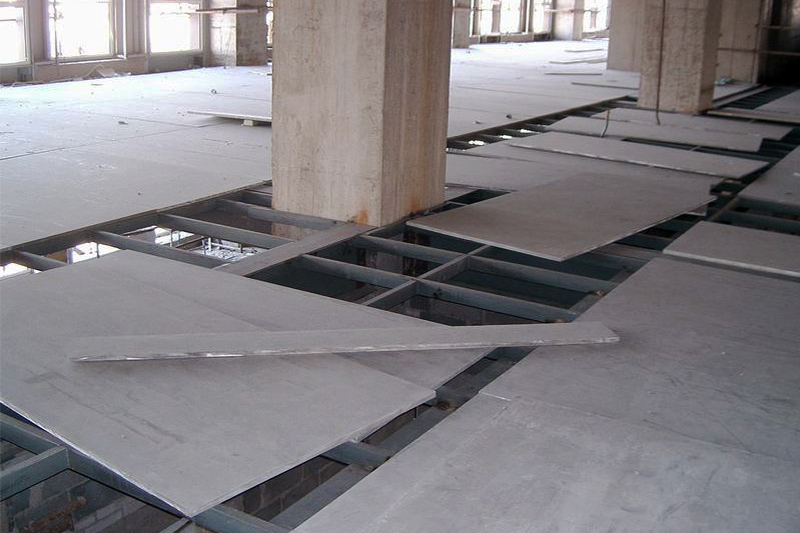

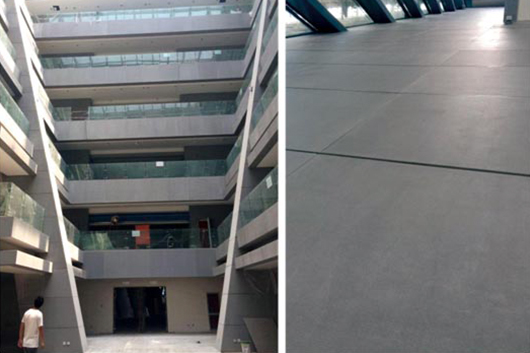

Suitable for serviced apartments, villas, steel‑frame offices, LOFT commercial spaces, mezzanine floors in steel‑structure factories, and similar projects. Architects, designers, and contractors can select this product according to specific project requirements.

Huachengxing LOFT Mezzanine Floor is specially designed for steel‑frame attics and has been widely used in major cities across China, including Beijing, Shanghai, Hangzhou, Shijiazhuang, Hohhot, Baotou, Tianjin, Guangzhou, Xi'an, and Dalian.

Standard Specifications: 1200 × 2400 mm, thickness 20‑30 mm
Custom sizes and cutting services are available; special specifications can be produced to order. For technical support, please contact our company directly.
